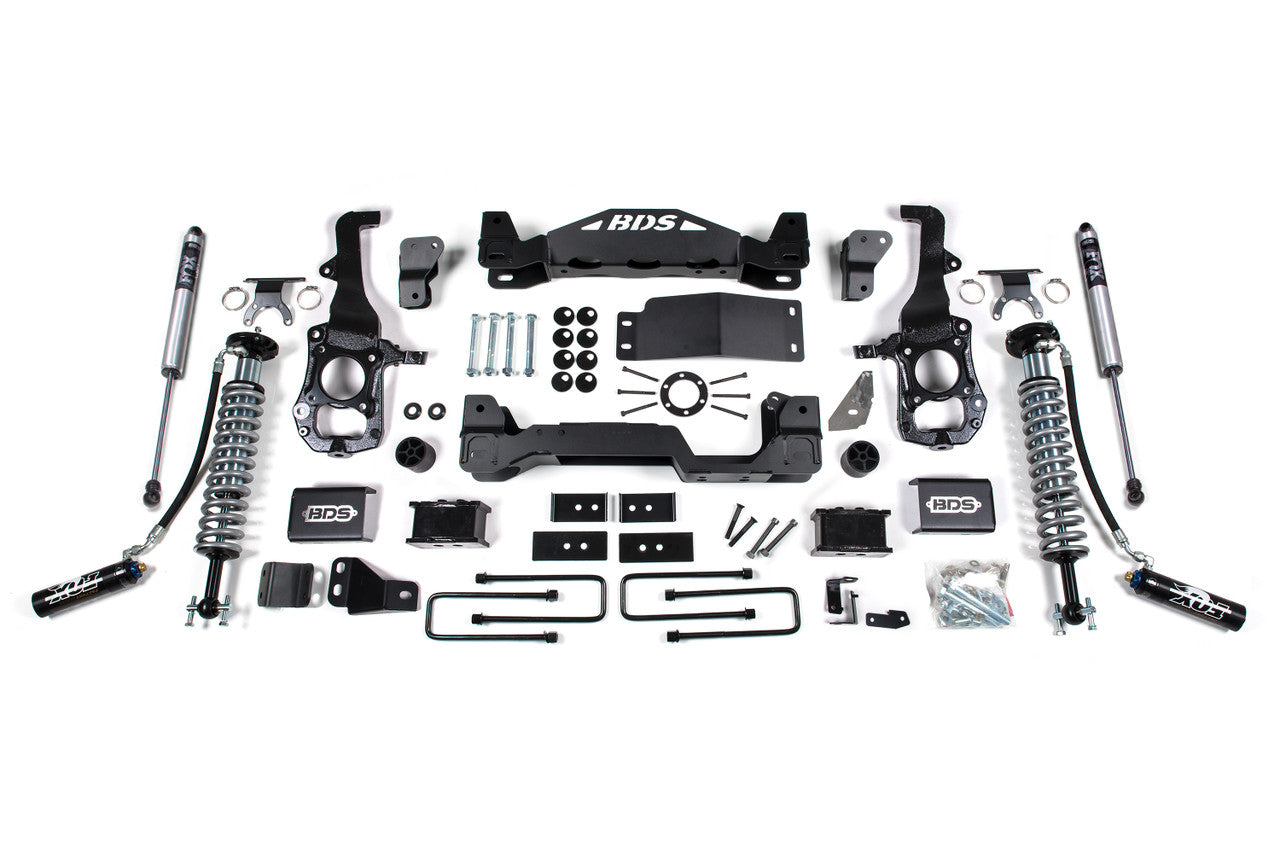

2021-2023 FORD F150 4IN. BDS LIFT SYSTEM - BDS1583FDSC

2021-2023 FORD F150 4IN. BDS LIFT SYSTEM - BDS1583FDSC

$4,028.61 USD
$4,028.61 USD
Sale Sold out
Snap Logo Lease for as low as $/week Learn More
BDS1583FDSC will bDS steps up the performance and capability of the 2021 Ford F150 trucks with 4-inch coil-over suspension lift kits. These kits feature proprietary FOX 2.5 coil-over shocks designed specifically to bolt-on performance for increase travel and the ability to soak up the roughest terrain along with smooth on-road comfort. This kit includes everything necessary to set your F150 truck up right with clearance for up to 35" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.5 remote reservoir coil-over shocks high-arched 1/4-inch thick steel crossmembers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse. In the rear BDS utilizes high strength fabricated lift blocks and longer u-bolts to lift and level the stance along with perfectly tuned FOX 2.0 Performance Series shocks.

DSC Adjustment


High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features-

  • Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
  • Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
  • Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
  • Multi-leaf progressive design for smooth ride
  • Anti-friction pads provide a smooth and quiet ride

    • Details-

  • Coil Over Option: FOX 2 5 Coil Overs with DSC Adjuster
  • Front Lift Height: 4 IN
  • Front Lift Method: Cross Member
  • Installation Difficulty: difficult
  • Installation Time: 8-10 Hrs
  • Installation Tools: 204 592 Ball Joint Separator Rec-Tie Rod Separator Rec-Torque Wrench-saw reciprocating
  • Rear Lift Height: 3 IN
  • Rear Lift Method: Block
  • Rear Lift Option: 3 Inch Block Kit
  • Shocks Included: Yes

    • Notes-

  • 18" or larger diameter wheels are required. Stock 17" and 18" wheels cannot be re-installed. Stock 20" wheels can be used with up to a 305/60R20 tire.
  • 18" wheels with 5-5.5" backspacing should be test fit prior to mounting the tire to ensure proper clearance to the steering knuckle/tie rod. 5.5" backspacing is highly recommended for tire-to-frame crash bar clearance.
  • Models with 2-piece rear driveshaft WILL require carrier bearing shim kit 122406 (not included w/ kit)
  • Block kits replace factory 1-1/4" block. The stock block will not be reinstalled.
  • Crash bars may require modification based on wheel and tire choice. It is the end user's responsibility to ensure modifications are non-detrimental to vehicle safety.
  • Does NOT fit diesel models.
  • Will not work with Tremor models.
  • Some trucks with a 2 piece drive shaft may have a recall from Ford regarding the rear driveshaft. (Safety Recall 21S25) Due to the recall procedure BDS recommends having this performed prior to installing the lift.
  • This system has not been tested on models equipped with Ford BlueCruise.
  • Will not work with models with CCD (Continuous Controlled Damping)
