2021-2023 FORD F-150 CREW CAB 4WD 6" LIFT KIT W/ BASIC SHOCKS- FABTECH K2371
2021-2023 FORD F-150 CREW CAB 4WD 6" LIFT KIT W/ BASIC SHOCKS- FABTECH K2371
2021-2023 Ford F-150 Crew Cab 4wd 6" Lift Kit W/ Basic Shocks- Fabtech K2371
Fabtech K2371 is the perfect lift kit for your 2021-2023 Ford F-150 4wd! If you're tired of the other guys failing rusty powder coat kits with no warranty and only a 1 year warranty of the parts then Fabtech has the right kit for you! Fabtech’s world-renowned IFS suspension design for the Ford F150 provides excellent drivability both on and off-road. There is zero bump steer throughout the suspension cycle that helps reduce driver fatigue while improving the overall drivability of the vehicle. The near-stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides an excellent lock to lock turning radius to maneuver in tight spots. Heavy-duty 1/4" thick steel crossmembers feature eccentric style alignment cams for easy adjustment. Triple front diff mounts reposition the differential for vibration-free operation at high speed. The factory coilovers shocks are relocated from the bottom to allow for full steering while achieving 6" of lift. At the rear of the vehicle, the factory 2" block is replaced with a 5" Block and u-bolt system. Fabtech has addressed all aspects of the suspension for proper wheel travel and lock to lock steering without over cycling. For added confidence, this lift comes with a free 5 year 60,000 mile Powertrain Warranty.
When your ready to lift your vehicle, make sure that you do it right with a Fabtech lift kit!
This Fabtech Lift Kit Fits-
- 2021-2023 Ford F-150 Crew Cab 4wd

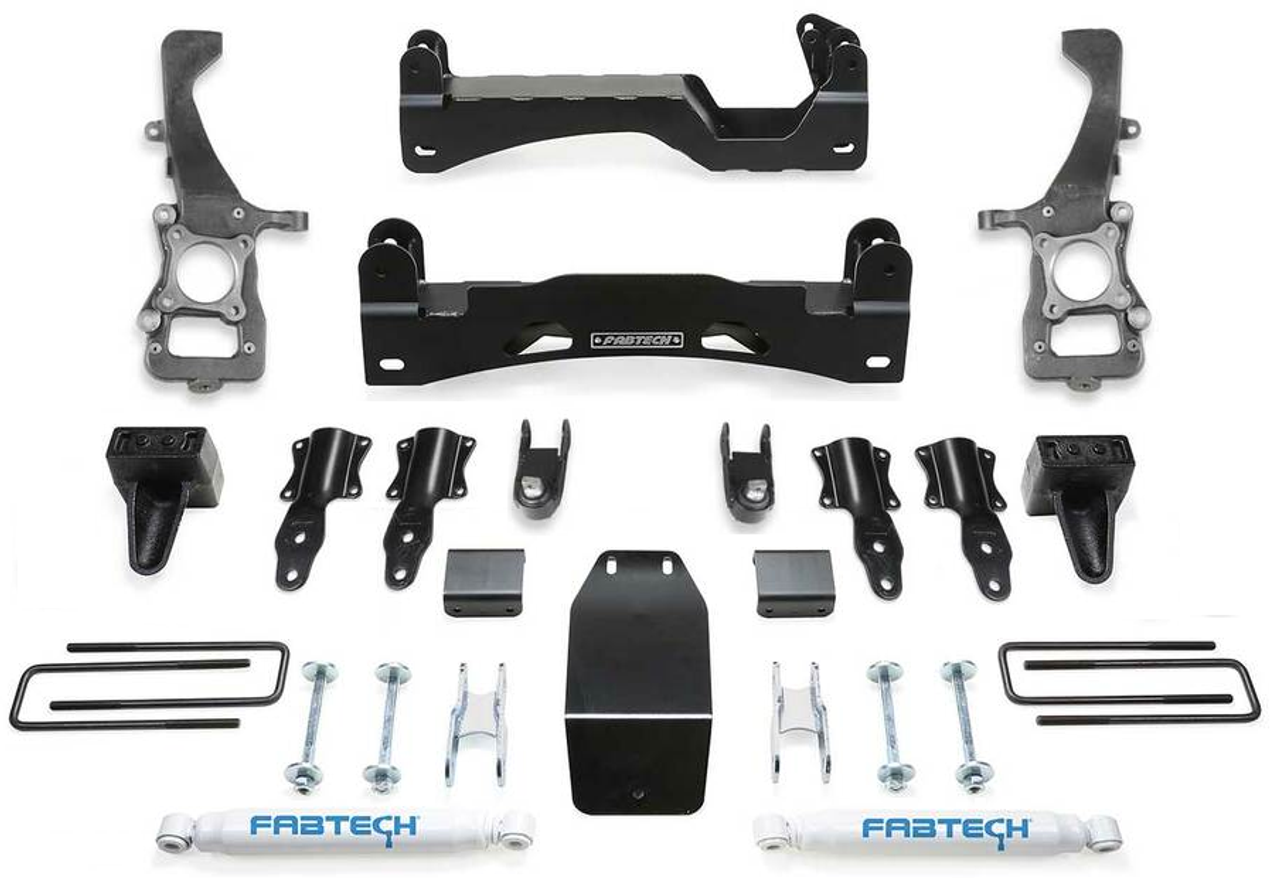

This 10" Fabtech Lift Kit Includes-
-
CROSSMEMBERS
- 1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension.
- STEERING KNUCKLES
- Fabtech’s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance.
- TIE RODS
- Oversized tie rods are provided to replace the stock units that are designed to handle oversized tires.
- COILOVER SPACERS
- The factory Coilovers are relocated with heavy duty lower mounts to lift the vehicle while retaining the stock ride quality.
- SKID PLATE
- A heavy-duty front differential Skid Plate is constructed of 1/4" thick steel to protect the diff from off-road obstacles.
- DIFFERENTIAL MOUNTS
- Triple Differential Mounts properly reposition the front diff for the precise CV and driveshaft angle to reduce driveline vibration at high speed.
- SWAY BAR MOUNTS
- 1/4" thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.
- REAR LIFT BLOCKS
- 5" tall steel rear lift blocks replace the factory 2" blocks for additional lift without changing the ride quality or load carrying capacity.
- REAR U-BOLTS
- High quality severe duty U-Bolts are designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
- PERFORMANCE REAR SHOCKS
- Extended length twin tube shocks provide a good highway ride with the ability to handle off-road use.
- Limited Lifetime Warranty
- Instructions
This Kit Is Packaged With Everything needed for install!
- FTS22324
- FTS22326
- FTS7266
Tire & Wheel Fitment-
- Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
- Tire Size – 37/12.50R20 Wheel Size – 20×9 w/ 5in BS w/cutting
Notes-
- Can not use OEM wheel and tire.
- Fits SuperCrew only.
- Will not fit Raptor models.
- Fits gas models only.
- Does not fit models equipped with CCD (continuously controlled damping) system.
- Does not fit hybrid models.
Fits-
- 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 Ford F-250 4wd
- 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016 Ford F-350 4wd
- 2011, 2012, 2013 F-450 [8 Lug]
Fabtech Part # K2149DL
