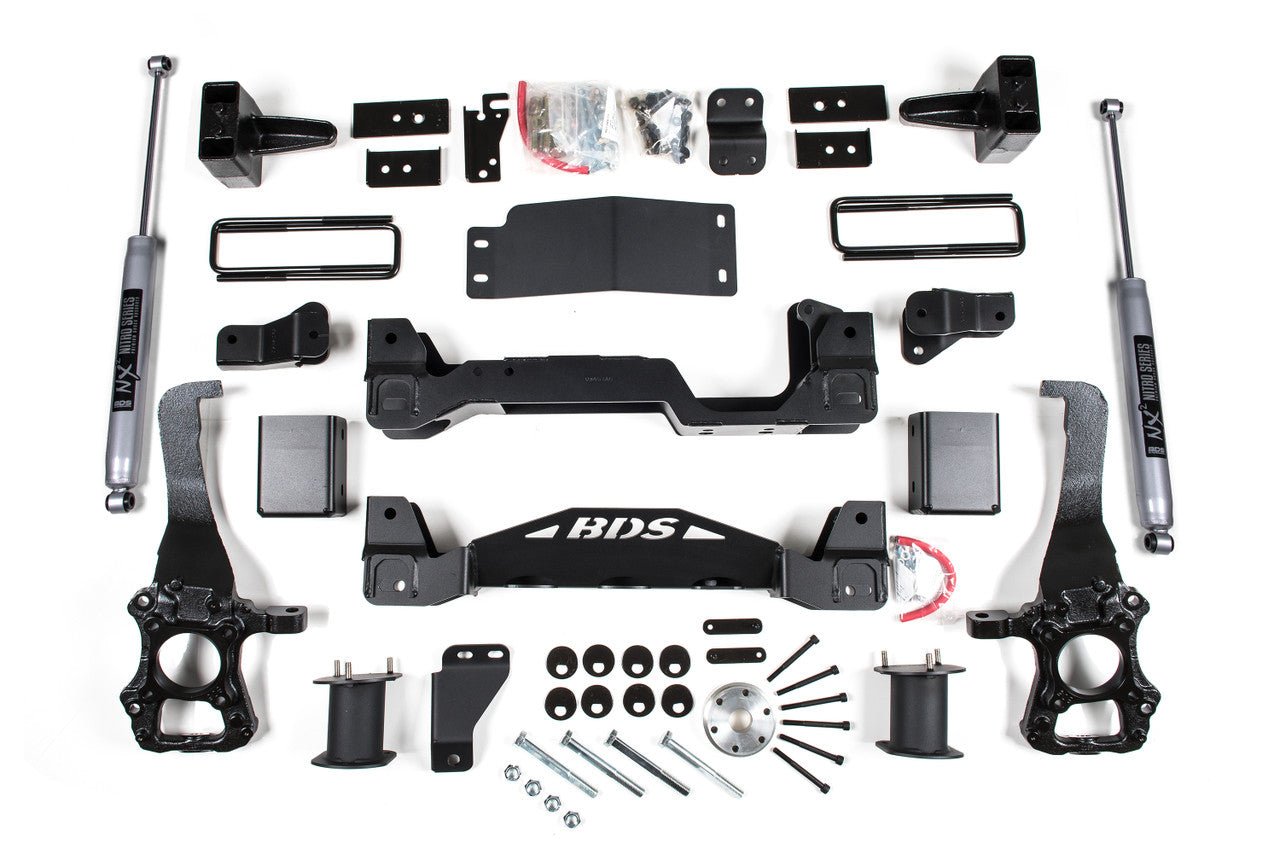

BDS1532H will take your 2015-2020 Ford F150 4WD truck to new heights with a 6-inch suspension lift kit by BDS. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 37" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers top mounted strut spacers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features-

• Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
• Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
• Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
• Multi-leaf progressive design for smooth ride
• Anti-friction pads provide a smooth and quiet ride

Details-

• Front Lift Height: 6 IN
• Front Lift Method: Cross Member
• Installation Difficulty: difficult
• Installation Time: 10 Hrs
• Installation Tools: cutOffTool-saw reciprocating
• Rear Lift Height: 5 IN
• Rear Lift Method: Block
• Rear Lift Option: 5 Inch Block Kit
• Rear Shock Option: NX2 Nitro Series
• Shocks Included: Yes

Notes-

• 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
• 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
• E-brake bracket required for factory powersteps (123018)
• Block kits replace factory 1-1/4" block.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
• Will not fit HD models (7 lug).
