2016-2023 NISSAN TITAN XD 3" LIFT STAGE 1 SUSPENSION SYSTEM - ICON K83031

2016-2023 NISSAN TITAN XD 3" LIFT STAGE 1 SUSPENSION SYSTEM - ICON K83031

Regular price $2,213.35 USD
Regular price Sale price $2,213.35 USD
Sale Sold out
Snap Logo Lease for as low as $/week Learn More

2016-2023 Nissan Titan XD 3" Lift Stage 1 Suspension System - ICON K83031

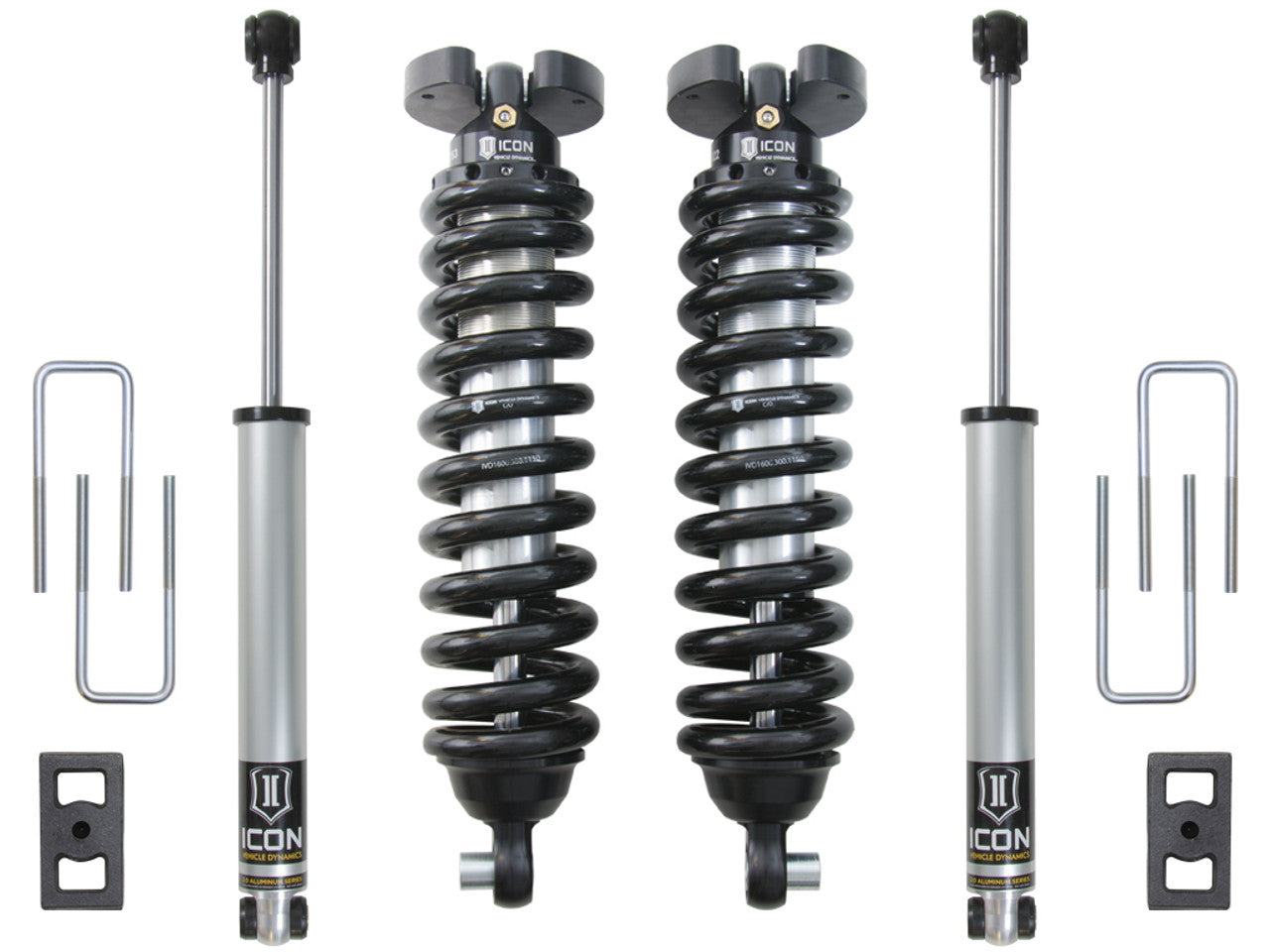

The 2016-2023 Nissan Titan XD is a truck with a heavy-duty build that’s aimed to blend the lines between ½ ton efficiency and ¾ ton capability. With this in mind, ICON Vehicle Dynamics has developed a complete suspension system designed from the ground up for improved performance on and off-road, increased wheel travel over stock, and the best ride quality on the market. The Stage 1 system includes ICON 2.5 Series coilovers, 2.0 Aluminum Series rear shocks, rear lift blocks, and u-bolts. These products feature high-quality components such as ICON-designed coil springs, precision machined internals, FK Rod End bearings, and a vehicle-specific shock tune that translates to a ride quality that is second to none. The ICON Vehicle Dynamics 2016-2023 Nissan Titan XD Stage 1 suspension system is an excellent choice for drivers looking to enhance the capabilities of their pickup on the road as well as in the dirt.

Features:

  • Fits 2WD / 4WD applications
  • Increased ride quality over stock with no change in towing capacity
  • Approximately 32% increased front wheel travel over stock
  • Adjustable coilovers provide 2.5-3" of lift height
  • Vehicle specific tuned front and rear shocks for superior shock damping and control
  • 6061 aircraft grade aluminum CNC machined components
  • Corrosion resistant CAD plated coilover shock body with 7/8" shaft
  • Corrosion resistant anodized shock body with 5/8" shaft (2.0 Aluminum Series shocks)
  • FK Rod End bearings for extended longevity and minimal deflection
  • 100% bolt-on system

Attributes:

  • Add-On Part: 198000 - 2 PIN COILOVER SPANNER WRENCH KIT
  • Add-On Part: 198001 - BILLET SPANNER WRENCH KIT
  • Bushings Included: Yes
  • California Proposition 65: WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
  • Coils Quantity Front: 2
  • Grade Type: Performance
  • Maximum Lift: 3IN
  • Mounting Hardware Included: Yes
  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5" Backspace / 0mm Offset
  • Shocks Included: Yes
  • Spring Color: Black
  • Spring Material: Steel

Notes:

  • OEM Wheels & Tires Fitment: Yes
  • Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 4.75” Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.00" Backspace / 0mm Offset
  • Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.00" Backspace / 0mm Offset
  • Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
  • APPLICATION NOTE #55: Shocks Are Fully Serviceable. Coilover Heights Indicated Are For A Stock Equipped Vehicle
  • APPLICATION NOTE #115: Lift Heights Based On 4Wd Crew Cab Diesel
  • Ships in multiple boxes
