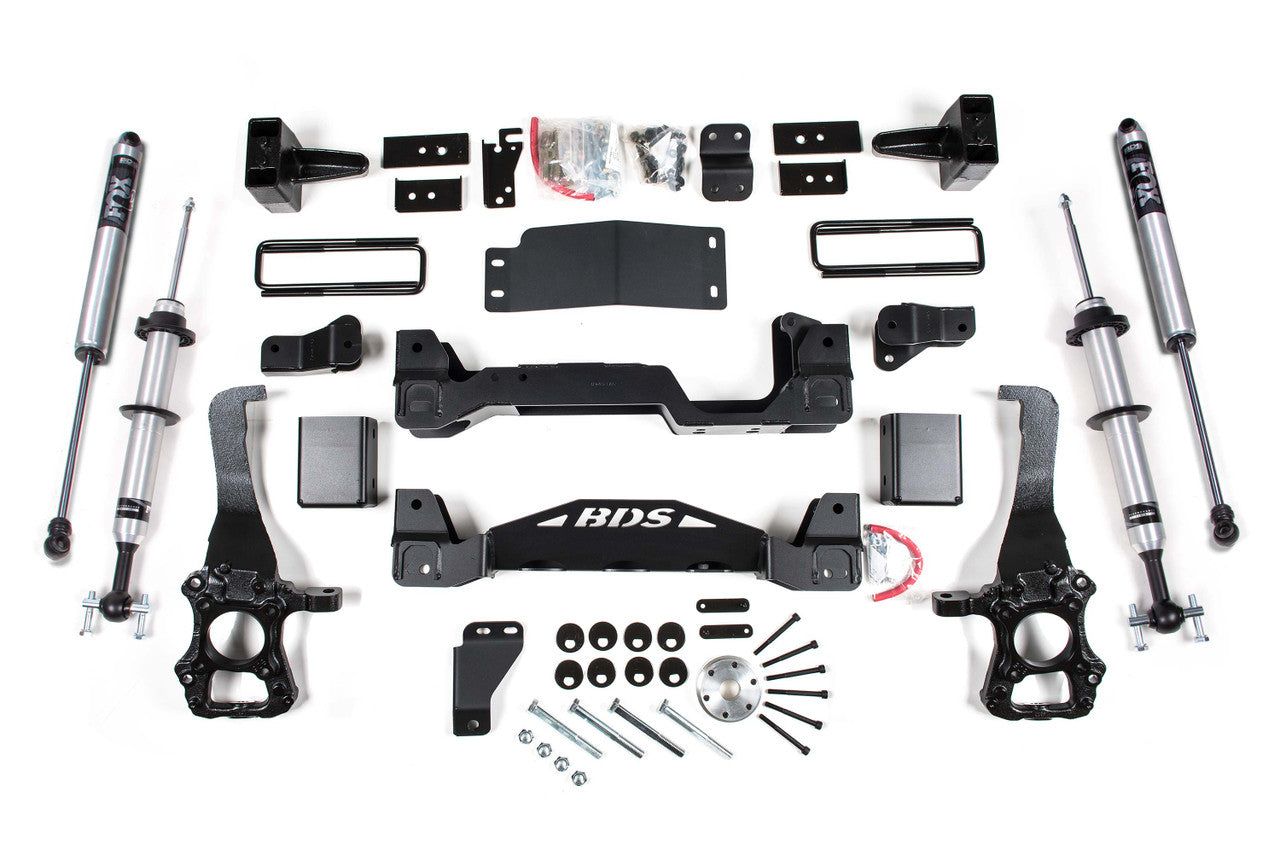

BDS1305FSR will prepare to get your 2015-2020 Ford F150 4WD truck dirty after installing a 6-inch lift kit with FOX 2.0 struts by BDS Suspension. Designed to improve stance the BDS 6 inch lift kit with FOX 2.0 front struts give more capability off-road. This kit includes everything necessary to set your F150 truck up right with clearance for up to 37" tires. This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance strength and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes FOX 2.0 strut shocks high-arched 1/4-inch thick steel crossmembers multipiece differential relocation brackets and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets brake line brackets alignment cam bolts supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.

FOX 2.0 Struts
These FOX 2.0 Performance Series coil-over struts bring impressive damper performance for great ride on and offroad capability designed as a direct bolt-in replacement for the factory strut assemblies while retaining the OE coil spring and top plate. They feature a 2.0"" extruded and machined 6061 T6 aluminum body for better heat dispersion along with an internal floating piston (IFP) to eliminate oil aeration FOX's proprietary internals 5/8"" hard chrome plated heat-treated alloy shaft.

High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.

Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.

Features-

• Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
• Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
• Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
• Multi-leaf progressive design for smooth ride
• Anti-friction pads provide a smooth and quiet ride

Details-

• Front Lift Height: 6 IN
• Front Lift Method: Cross Member
• Installation Difficulty: difficult
• Installation Time: 8-10 Hrs
• Installation Tools: cutOffTool-saw reciprocating-strutCompressor
• Rear Lift Height: 4 IN
• Rear Lift Method: Block
• Rear Lift Option: 4 Inch Block Kit
• Shocks Included: Yes

Notes-

• 18" wheels with 5-5.5" total backspacing should be test fir prior to mounting tire to ensure proper clearance to BDS steering knuckle.
• 18" or larger diameter wheels required. Stock 17" and 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
• E-brake bracket required for factory powersteps (123018)
• Block kits replace factory 1-1/4" block.
• Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122406
• Will not fit HD models (7 lug).
