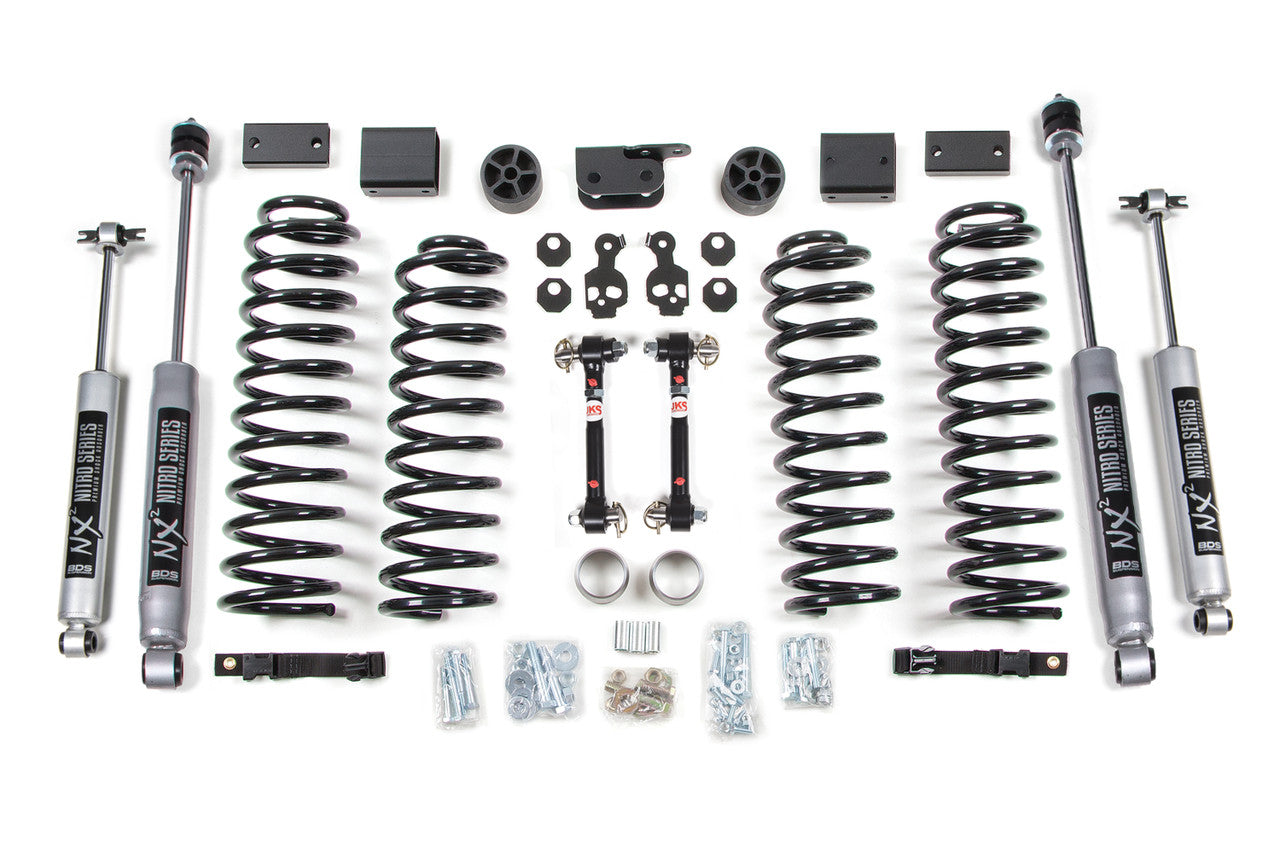

BDS1403H will upgrade the ride and style of your 2012-2018 Jeep Wrangler JK 4 Door with this 3-inch coil spring lift kit from BDS Suspension. Designed to improve stance this kit includes everything necessary to set your truck up right with clearance for up to 35" tires. Up front the lift kit includes 3" Pro-Ride coil springs capable of full coil bind and 2" bump stop extensions to control the compression travel but increase wheel travel. Also included are brake line brackets alignment cams to fine tune front caster angles and sway bar links. In the rear the kit utilizes Pro-Ride coil springs sway bar drop brackets and a rear frame mounted track bar relocation bracket to correct axle shift. Round out this 3" lift kit with your choice of specially tuned NX2 nitro series gas shocks or FOX 2.0 IFP performance series gas shocks to offer improved damper performance.

Pro-Ride Coil Springs
A pair of full-length gas-specific progressive rate Pro-Ride coil springs are supplied to provide the correct lift height and smooth predictable ride across various terrains. Manufactured from high tensile steel our direct OE replacement coil springs are engineered with properly sized wire diameter. This results in maximum reliability without premature coil bind.

Features-

• Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
• Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
• Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
• Multi-leaf progressive design for smooth ride
• Anti-friction pads provide a smooth and quiet ride

Details-

• Front Lift Height: 3 IN
• Front Lift Method: Coil Springs
• Installation Difficulty: moderatelyEasy
• Installation Time: 6 Hrs
• Installation Tools: Basic Hand Tools-Torque Wrench-dieGrinder-drill-jack hydraulic
• Rear Lift Height: 3 IN
• Rear Lift Method: Coil Springs
• Shocks Included: Yes
• Sway Bar Link Option: Disconnects

Notes-

• Exhaust modification may be required.
• This kit is FMVSS No.126 Compliant
• This kit is right-hand drive compatible. Follow right-hand drive installation instructions when installing this kit on a right-hand drive vehicle.
• If using these rear sway bar links the sway bar drop will not need to be installed. This also requires a wheel with 4.5" backspacing or less for tire clearance.
