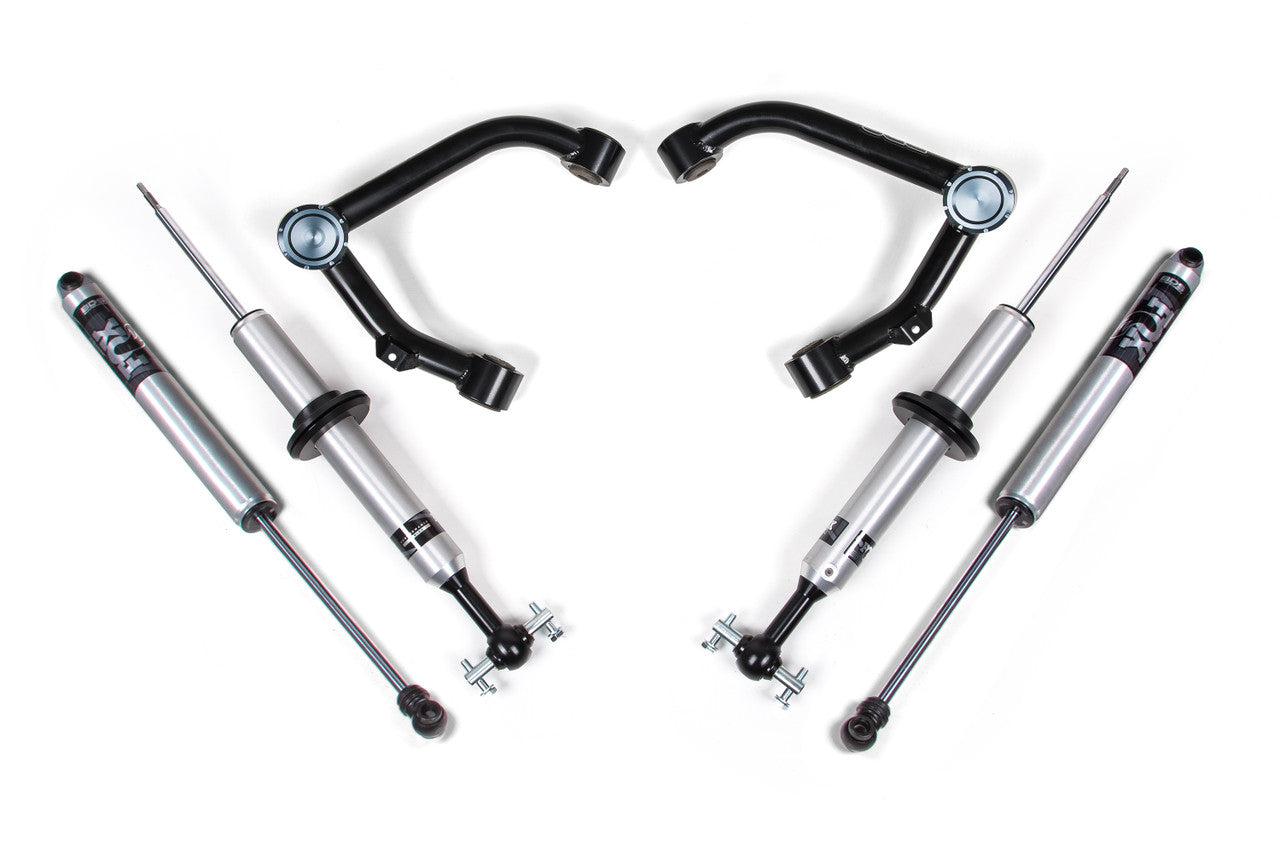

BDS758FSR will built to outperform upgrade your 2014-2018 Chevy Silverado and GMC Sierra 1500 with this 2-inch lift kit featuring FOX 2.0 Snap Ring Struts from BDS Suspension. Designed to improve stance performance and capability this kit includes everything necessary to set your truck up right with clearance for up to 33" tires. Up front the lift kit includes FOX 2.0 Performance Series strut shocks and heavy duty tubular upper control arms for increased strength. In the rear this kit utilizes a matching set of FOX 2.0 Performance shocks for the smoothest ride.

FOX 2.0 Snap Ring Strut
The mono-tube design's internal reservoir separates the shock oil from the high-pressure nitrogen-charged gas chamber. The IFP eliminates oil aeration allowing maximum performance from the factory-tuned precision valving. A custom-molded spring seat allows the use of your stock spring and mounting hardware. The precision impact-extruded 2-inch aluminum body is lightweight and rust resistant. Three predetermined preload settings allow a choice of 0- 1- or 2-inches of lift.

HD Upper Control Arms
Built for strength performance and increased travel these upper control arms are ready to bolt-in with most leveled/lifted trucks. They use 1.5" OD x .120-wall tubular construction with an indexed ball joint cup to correct the ball joint positioning allowing additional down travel and camber adjustment. At the frame mounting ends are durometer-specific rubber bushings for maintenance-free operation while at the other end a quality greaseable ball joints for smooth quiet operation and superior durability. Arms are finished in a durable black powder coat with a billet aluminum dust cap ready for installation right out of the box.

Features-

• Tapered and roll-pointed leafs add flexibility and provide an even deflection rate
• Increased wheel travel and a softer ride from tapering allow smoother transition between leafs as compression takes place
• Higher articulation from bolt-style leaf alignment clamps prevents leafs from fanning out allowing leafs to twist and flex
• Multi-leaf progressive design for smooth ride
• Anti-friction pads provide a smooth and quiet ride

Details-

• Factory Control Arm Type: aluminum stamped steel
• Front Lift Height: 2 IN
• Front Lift Method: Coil Over
• Installation Difficulty: moderate
• Installation Time: 3-4 Hrs
• Installation Tools: strutCompressor-welder
• Rear Lift Height: 0 IN
• Rear Lift Method: Stock
• Shocks Included: Yes

Notes-

• Strut compressor required for Installation
• Snap ring strut kits will reuse factory top mounting hardware AND coil spring
• 33x12.50 tires will require weld on steering stop also it requires inner fender well modification to clear this width tire
